Advanced Ruckus Icx 8200-48zp2-E2 Switch with 150W Power Supply
Produktdetails:
| Markenname: | RUCKUS |
| Model Number: | RUCKUS ICX 8200-48ZP2-E2 |
Zahlung und Versand AGB:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detailinformationen |
|||
| Model NO.: | ICX 8200-48zp2-E2 | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | ≧48 | Weight: | 4.96 Kg |
| Operating Temperature: | Operating: 0°c to 45°c | Power Supply: | 1839W |
| Uplinks: | 4X 1/10/25 Gbps SFP/SFP+/SFP28 Uplinks | Transport Package: | Carton |
| Specification: | 28cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
Produkt-Beschreibung

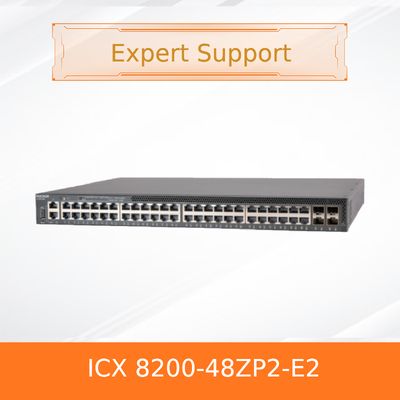

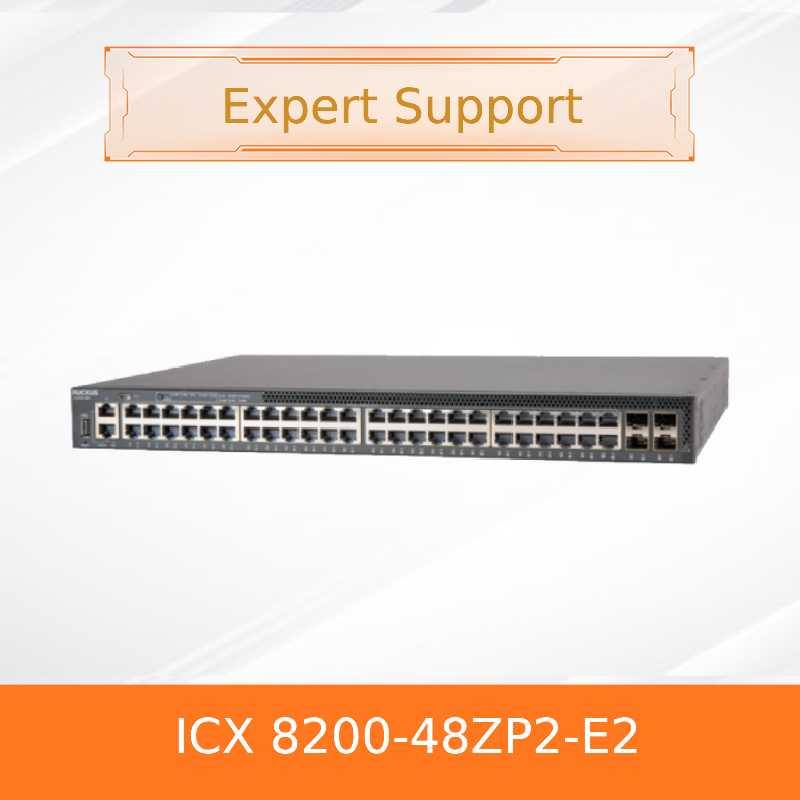

RUCKUS ICX 8200-48ZP2-E2
Enterprise-class stackable access switch with future-proof expandability
Enterprise-class stackable access switch with future-proof expandability
he RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features
and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features,
manageability, performance, and reliability with the flexibility, cost effectiveness, and "pay as you grow" scalability of stackable solution.
and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features,
manageability, performance, and reliability with the flexibility, cost effectiveness, and "pay as you grow" scalability of stackable solution.
RUCKUS ICX 8200-48ZP2-E2 RUCKUS ICX 8200 Switch, 32×10/100/1000 Mbps PoE+ ports, 16×100/1000/2500 Mbps RJ-45 PoE++ ports, 4×25 GbE SFP28 stacking/uplink-ports, 1480 W PoE budget, hot swap power supplies and fans, two power supplies and two fans included, three-year remote TAC
support. Power cords not included.
support. Power cords not included.
RUCKUS ICX 8200-48ZP2-E2 | |
Switching capacity (data rate, full duplex) | 334 Gbps |
Forwarding capacity (data rate, full duplex) | 254 Mpps |
10/100/1000 Mbps RJ45 ports | 32 |
100/1000 Mbps/2.5 Gbps RJ45 downlinks (full duplex only) | 16 |
1/10 Gbps SFP/SFP+ uplinks | - |
1/10/25 Gbps SFP/SFP+/SFP28 uplinks | 4 |
PoE/PoE+ 802.3at ports | 32 |
Dual hot-swap power supplies and fan modules | yes |
Max PoE Class 3 ports (15.4 W per port) | 48 |
Max PoE+ Class 4 ports (30 W per port) | 24 (1 PSU) 48 (2 PSU) |
Maximum PoE++ Class 6 ports (60 W per port) | 12 (1PSU) 16 (2 PSU) |
Maximum PoE++ Class 8 Ports
(90 W per port) | 8(1PSU) 16 (2PSU |
Advanced IPv4/v6 Layer 3 (OSPF, VRRP, VRF, GRE, PIM, PBR) | With License |
Aggregated stacking bandwidth (data rate, full duplex) | 1.2 Tbps |
Stacking density (maximum switches in a stack) | 12 |
Stacking ports (maximum ports usable for stacking) | Up to 4×25 GbE SFP28 |
Maximum stacking distance (distance between stacked switches) | 10 km |
