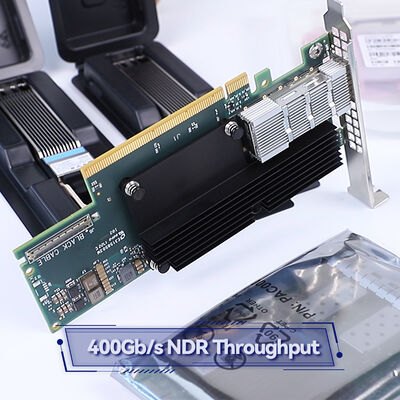

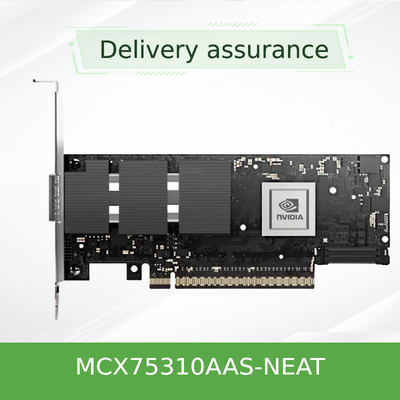

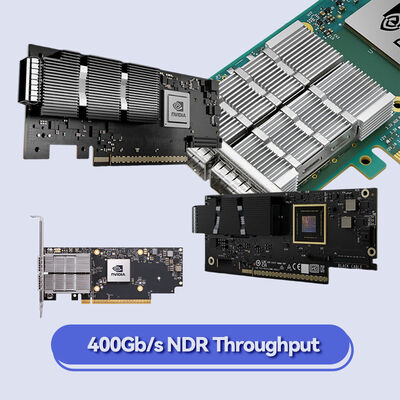

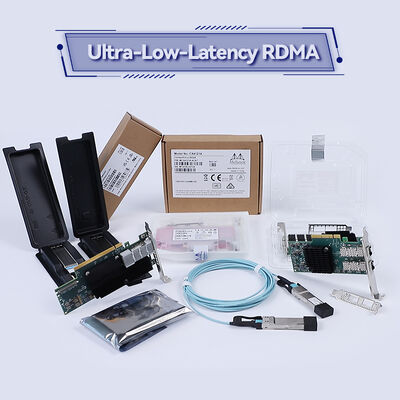

NVIDIA ConnectX-7 MCX75310AAS-NEAT Single-Port 400GbE / NDR400 VPI Adapter – PCIe 5.0 x16, OSFP, Secure Boot
Produktdetails:
| Markenname: | Mellanox |
| Modellnummer: | MCX75310AAS-NEAT (900-9x766-003n-SQ0) |
| Dokumentieren: | Connectx-7 infiniband.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 STÜCK |
|---|---|
| Preis: | Negotiate |
| Verpackung Informationen: | Äußere Box |
| Lieferzeit: | Auf der Grundlage der Bestände |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | Versorgung nach Projekt/Batch |
|
Detailinformationen |
|||
| Modell Nr.: | MCX75310AAS-NEAT (900-9x766-003n-SQ0) | Häfen: | Single-Port |
|---|---|---|---|
| Technologie: | Infiniband | Schnittstellentyp: | OSFP56 |
| Spezifikation: | 16,7 cm x 6,9 cm | Herkunft: | Indien / Israel / China |
| Übertragungsrate: | 400gbe | Host -Schnittstelle: | Gen3 x16 |
| Hervorheben: | NVIDIA ConnectX-7 400GbE network adapter,Mellanox NDR400 VPI adapter PCIe 5.0,Secure Boot OSFP network card |
||
Produkt-Beschreibung
NVIDIA ConnectX-7 MCX75310AAS-NEAT Single-Port 400GbE / NDR400 VPI Adapter
High-performance single-port RDMA adapter delivering 400Gb/s throughput over InfiniBand (NDR400) and Ethernet (400GbE) protocols. Features PCIe 5.0 x16 host interface, OSFP connectivity, Secure Boot, and hardware-accelerated networking for AI, HPC, and hyperscale cloud workloads.
Product Overview
The NVIDIA ConnectX-7 MCX75310AAS-NEAT is a single-port VPI (Virtual Protocol Interconnect) adapter from the ConnectX-7 family, supporting both InfiniBand and Ethernet protocols at speeds up to 400Gb/s. This model features a single OSFP port and PCIe 5.0 x16 host interface, making it suitable for high-bandwidth, low-latency applications including AI training, scientific computing, and cloud data center interconnects.
Important Note: The "AS" variant includes Secure Boot with hardware root-of-trust but has crypto functions disabled. For environments requiring IPsec, TLS, or MACsec inline encryption offload, please consider the "AC" variant (MCX75310AAC-NEAT).
Key Specifications
| Parameter | Detail |
|---|---|
| Model | MCX75310AAS-NEAT |
| NVIDIA SKU | 900-9X766-003N-SQ01 |
| Form Factor | PCIe Half Height, Half Length (HHHL) – 68.90mm x 167.65mm |
| Ports | Single-port OSFP |
| Protocols | InfiniBand (VPI) and Ethernet |
| InfiniBand Data Rates | NDR400 (default), NDR200, HDR, HDR100, EDR, FDR, SDR |
| Ethernet Data Rates | 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 10GbE, 1GbE |
| Host Interface | PCIe 5.0 x16 (32 GT/s), compatible with Gen 4.0/3.0 |
| Secure Boot | Yes (hardware root-of-trust) |
| Crypto Offload | Disabled on AS variant |
Advanced Technologies
- Dual-Protocol VPI: InfiniBand (NDR400) and Ethernet (400GbE) on the same adapter
- RDMA & RoCE Support: Hardware-based reliable transport with RoCE for efficient data movement
- In-Network Computing: Collective operations offload, MPI tag matching, and NVIDIA SHARP support
- GPUDirect Storage & RDMA: Accelerated data paths for GPU and storage workloads
- ASAP2 SDN Acceleration: Accelerated Switch and Packet Processing for SDN/VNF with no CPU penalty
- Virtualization & Overlay Offload: SR-IOV, VirtIO acceleration, VXLAN/NVGRE/GENEVE offloads
- Storage Acceleration: NVMe-oF Target, NVMe/TCP, T10-DIF, SRP, iSER, NFS over RDMA
- Precision Timing: IEEE 1588v2 PTP, SyncE, and PPS I/O for timing-sensitive applications
Typical Deployments
- AI and Machine Learning Clusters: High-bandwidth, low-latency interconnect for GPU-accelerated training and inference at 400Gb/s
- Scientific Computing & HPC: InfiniBand-based supercomputing with MPI, SHARP, and GPUDirect Storage
- Hyperscale Data Centers: 400GbE Ethernet fabrics with RoCE for cloud-native applications and storage disaggregation
- Enterprise Storage Systems: NVMe-oF target offload and RDMA-based storage protocols
- Telecom & Edge: Precision timing (IEEE 1588v2, SyncE) for 5G and time-sensitive infrastructure
Compatibility
| Category | Supported Options / Versions |
|---|---|
| Host Interface | PCIe 5.0 x16 (32 GT/s), PCIe 4.0 x16, PCIe 3.0 x16 |
| Operating Systems | Linux (RHEL, Ubuntu), Windows Server, VMware ESXi, Kubernetes |
| InfiniBand Speeds | NDR400 (default), NDR200, HDR, HDR100, EDR, FDR, SDR |
| Ethernet Speeds | 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 10GbE, 1GbE |
| Port / Connector | Single OSFP |
| HPE Server Support | HPE Gen 10 Plus, Gen 11 (P45641-B21/H21) |
Selection Guide
Important Variant Note: The MCX75310AAS-NEAT (this model) has Secure Boot enabled but Crypto disabled. If your deployment requires inline hardware encryption/decryption for IPsec, TLS, or MACsec, please select the MCX75310AAC-NEAT variant which includes both Secure Boot and Crypto engines.
Considerations:
- Port Density: This is a single-port OSFP adapter. For dual-port 200GbE/NDR200 configurations, consider MCX755106AS-HEAT
- Cables & Transceivers: Use OSFP-compatible cables or optical modules for 400GbE/NDR400
- Bracket Options: The card ships with a tall bracket; a short bracket is also available for low-profile chassis
- Server Compatibility: HPE customers can order as HPE P45641-B21 or P45641-H21
Buyer Checklist
- Confirm your server has an available PCIe 5.0 or 4.0 x16 slot (physical and electrical)
- Determine if crypto offload (IPsec/TLS/MACsec) is required; if yes, order the MCX75310AAC-NEAT variant instead
- Select compatible OSFP cables/transceivers – supports 400GAUI-4 C2M and 400GBASE-CR4 standards
- Verify OS support – check that your Linux distribution or Windows version has in-box or available drivers
- Consider bracket type – the card includes tall bracket; confirm your chassis compatibility
- For HPE servers, order as HPE P45641-B21 or P45641-H21 for direct compatibility
Related Products
- NVIDIA ConnectX-7 MCX75310AAC-NEAT – Same single-port 400GbE/NDR400 OSFP adapter with crypto enabled (IPsec/TLS/MACsec offload)
- NVIDIA ConnectX-7 MCX755106AS-HEAT – Dual-port 200GbE/NDR200 QSFP112 adapter
- NVIDIA ConnectX-8 – Next-generation 800GbE/XDR adapters
- NVIDIA Quantum-2 InfiniBand Switches – For building end-to-end NDR400 InfiniBand fabrics
